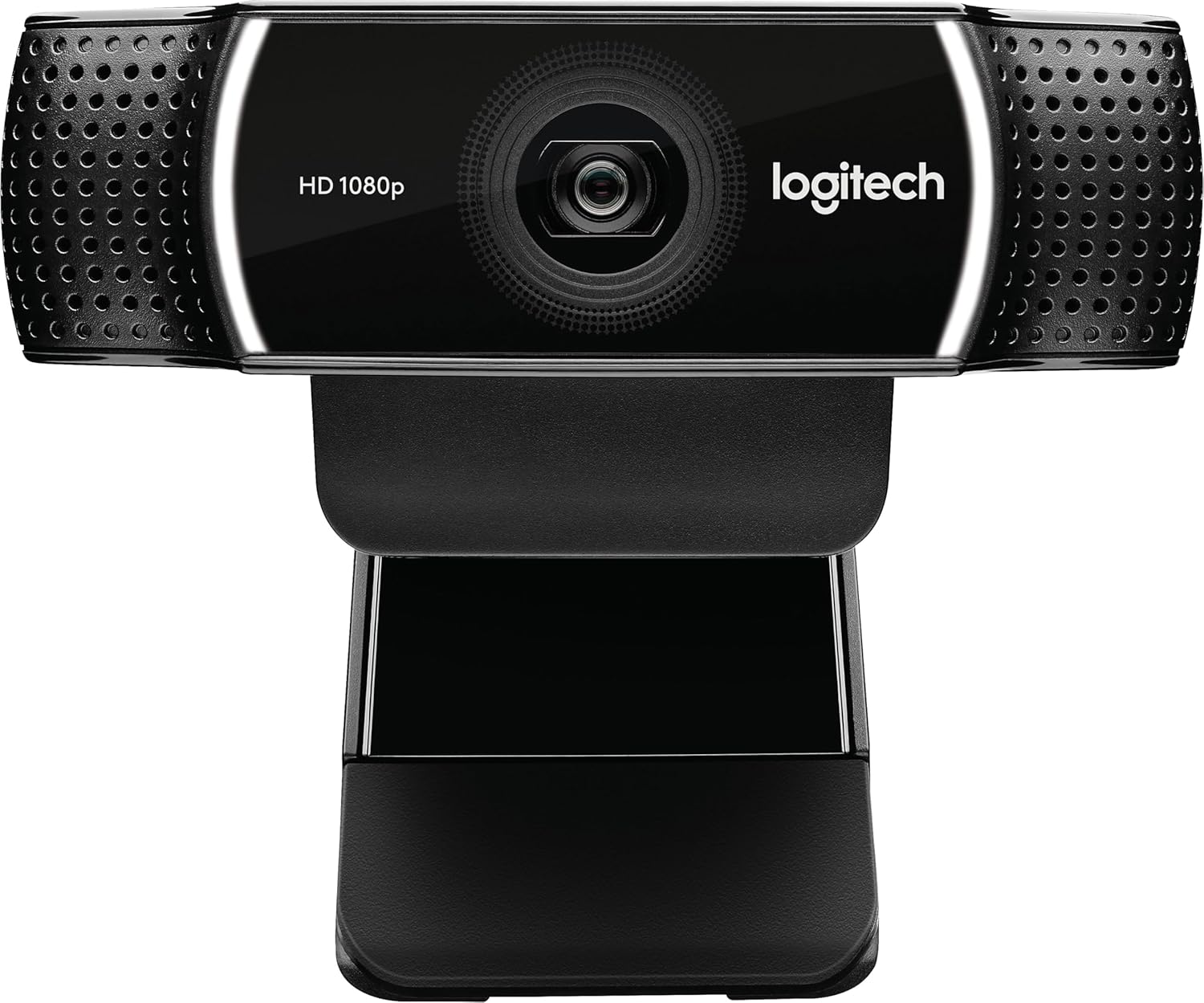

Logitech C922 Pro HD Stream Webcam
Specifications
| Specification | Details |
|---|---|
| Resolution | 1080p/30 fps, 720p/ 60 fps, 720p/ 30 fps |
| Mounting | Universal mounting clip (included) compatible with tripods, laptops, LCD, or monitors |
| Camera Mega Pixel | 3 |
| Lens Type | Full HD Glass Lens |
| Focus Type | 20-step autofocus |
| Mic Pattern | Built-in Dual Stereo |
| Fields of View | Diagonal: 78° |
| Horizonal: 70.42° | |
| Vertical: 43.3° | |
| Digital Zoom | 1.2x |
| Night Vision | No |
| Onboard Storage | No |
| UVC Support | 1.1 |
| Right Light | Automatic low-light correction |
| Video Effects | Background replacement with Cameo by Personify |
| Privacy Shade | No |
| Dimensions | 1.73 in (44 mm) x 3.74 in (95 mm) x 2.8 in (71 mm) (including mounting clip) |
| Weight | 5.71 oz (162 g) |
| Cable | USB-A |
| Cable Length | 5 ft (1.5 m) |
| Compatibility | Windows 8 or later |
| macOS 10.10 or later | |
| ChromeOS |
Documentation from Logitech for setup, downloads, videos, warranty information, and more here.
In the Box
The following should be included in the box:
- C922 Pro HD Stream Webcam
- USB-A cable

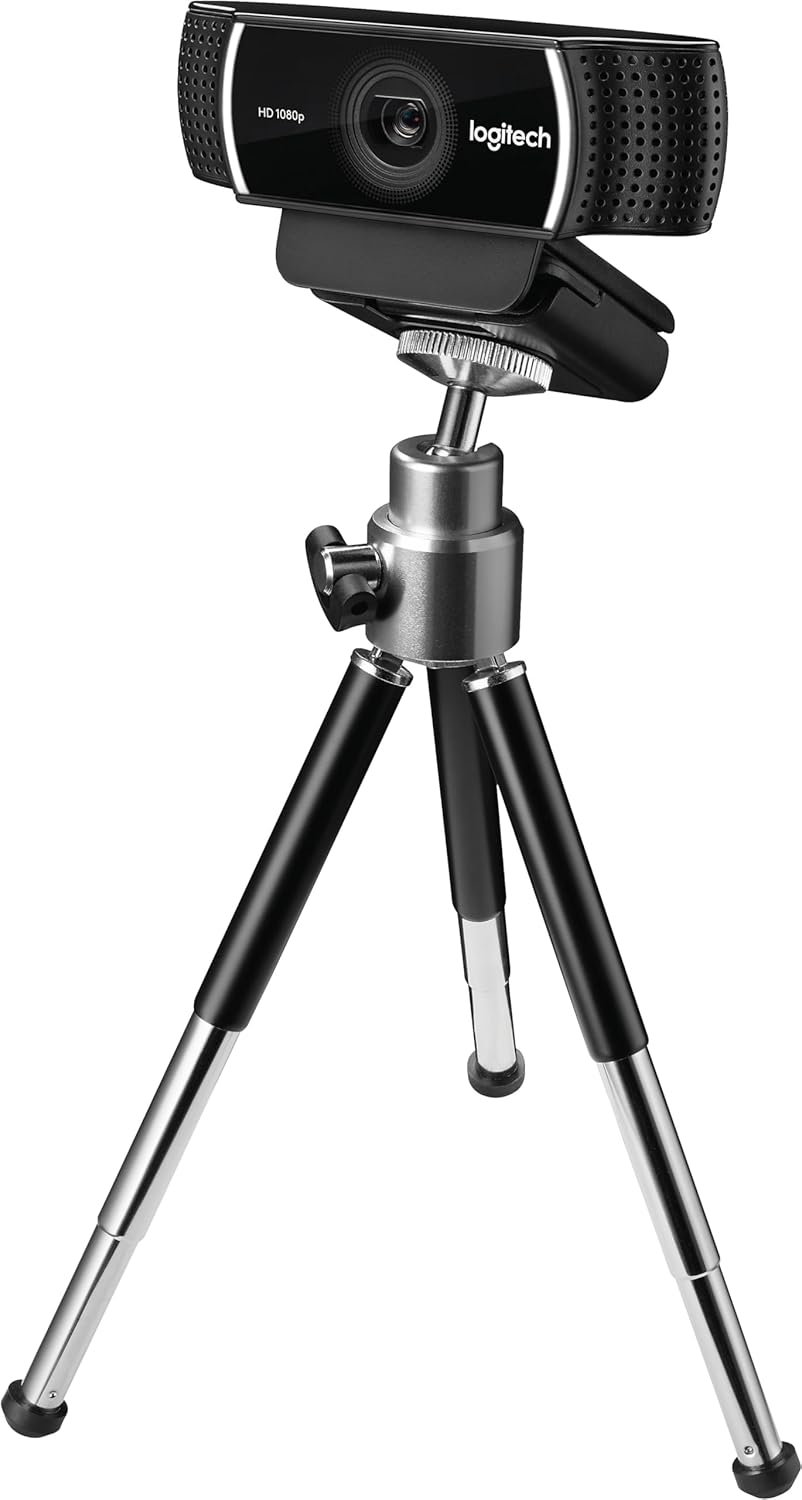

- Tripod
- User documentation
- 3 month premium XSplit license
Hardware Setup
- Open your C922 Pro HD Stream Webcam.
- Plug it in.
Software Setup
Open ‘Command Prompt’ and cd into the directory that contains the script “webcam_video.py”.
>> cd ~/Documents

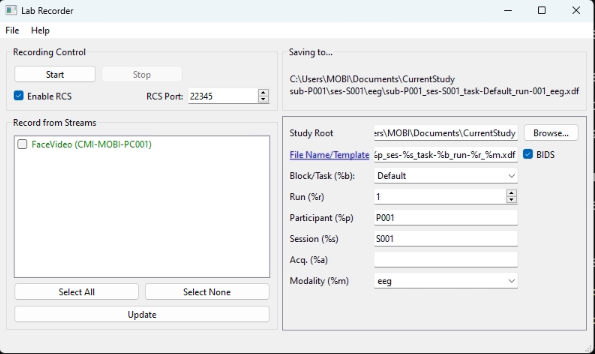

Open LabRecorder.
Run the following at the command line. You must specify a file name for the .avi file.
>> python webcam_video.py –filename name_your_file
Click “update” on LabRecorder and you should see the stream available.
