Zed 2i

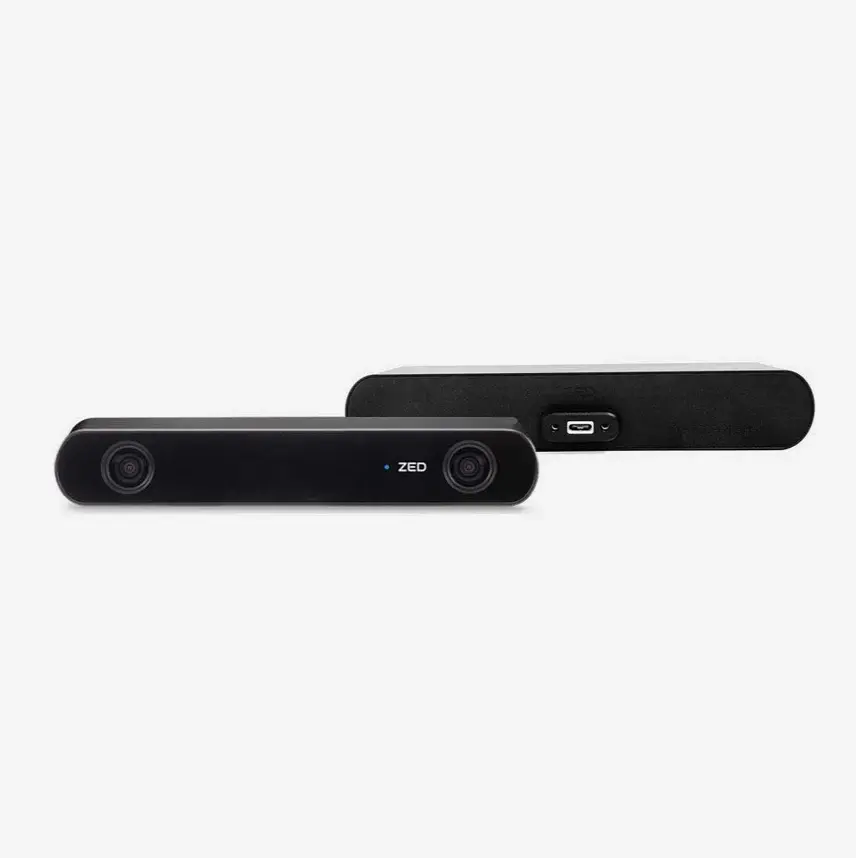

Zed 2i Device

Specifications

Specification Details
Device Type Motion Tracking Camera
Resolution 1920x1080
Frame Rate 30 FPS
Connectivity USB 3.0
Power Requirement 5V
Dimensions 150mm x 50mm x 40mm

In the Box

The following should be included in the box:

  • 1 x ZED 2i

Hardware Setup

Follow these steps to set up the hardware:

  1. Unbox the Zed 2i and check all components.
  2. Connect the device to a compatible power source.
  3. Attach the USB cable to connect to the main computer.
  4. Position the device at the desired location for optimal tracking.
  5. Perform a calibration if necessary.

Software Setup

To Set Up the Software for the Zed 2i

Download ZED SDK

  • Run the installer
  • Accept the terms
  • Download and install CUDA if prompted
  • Restart your computer

Grant Permission to Write to the zed_sdk Folder

  • Navigate to the ZED SDK folder in C:\Program Files (x86) in File Explorer
  • Right-click on the folder → select Properties → go to the Security tab → click Edit
  • Select the correct user and tick the box next to Full control under Allow
  • Click Apply and OK, then restart your terminal

Install ZED Python API

Create and Activate Environment

conda create -n zed_api_env python=3.11
conda activate zed_api_env

Download Dependencies

pip install pyopengl==3.1.6 numpy==1.26.4 cython opencv-python requests

Note: Using pip version 24.0.

Run get_python_api.py

cd "C:\Program Files (x86)\ZED SDK"
python get_python_api.py

This should complete without errors, though it may automatically install numpy 2.0.0, which may cause issues.

Manual Uninstall and Reinstall of numpy (if error persists)

pip uninstall numpy==2.0.0
pip install numpy==1.26.4

Manual Uninstall and Reinstall of pyopengl and pyopengl-accelerate

  • Download the following files from this Google Drive link:
  • PyOpenGL-3.1.7-cp311-cp311-win_amd64.whl
  • PyOpenGL_accelerate-3.1.7-cp311-cp311-win_amd64.whl
  • Move the wheel files to the ZED SDK directory
  • Install the wheels:
cd "C:\Program Files (x86)\ZED SDK"
pip install .\PyOpenGL-3.1.7-cp311-cp311-win_amd64.whl
pip install .\PyOpenGL_accelerate-3.1.7-cp311-cp311-win_amd64.whl

Run body_tracking

cd "ZED SDK\samples\body tracking\body tracking\python"
python body_tracking.py

To Run the Edited body_tracking Script (Exports to Excel)

  • Install the necessary libraries:
pip install pandas openpyxl
