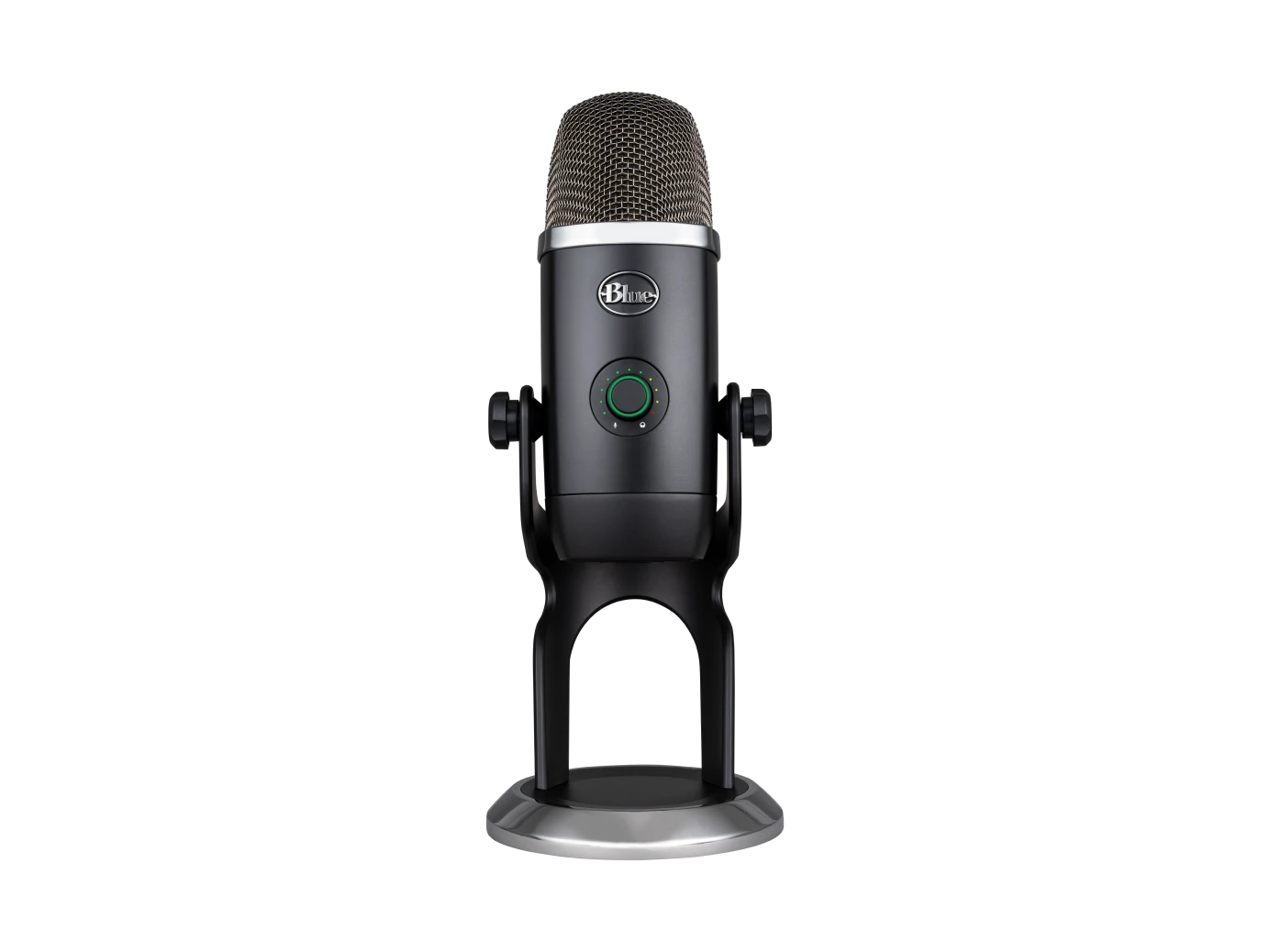

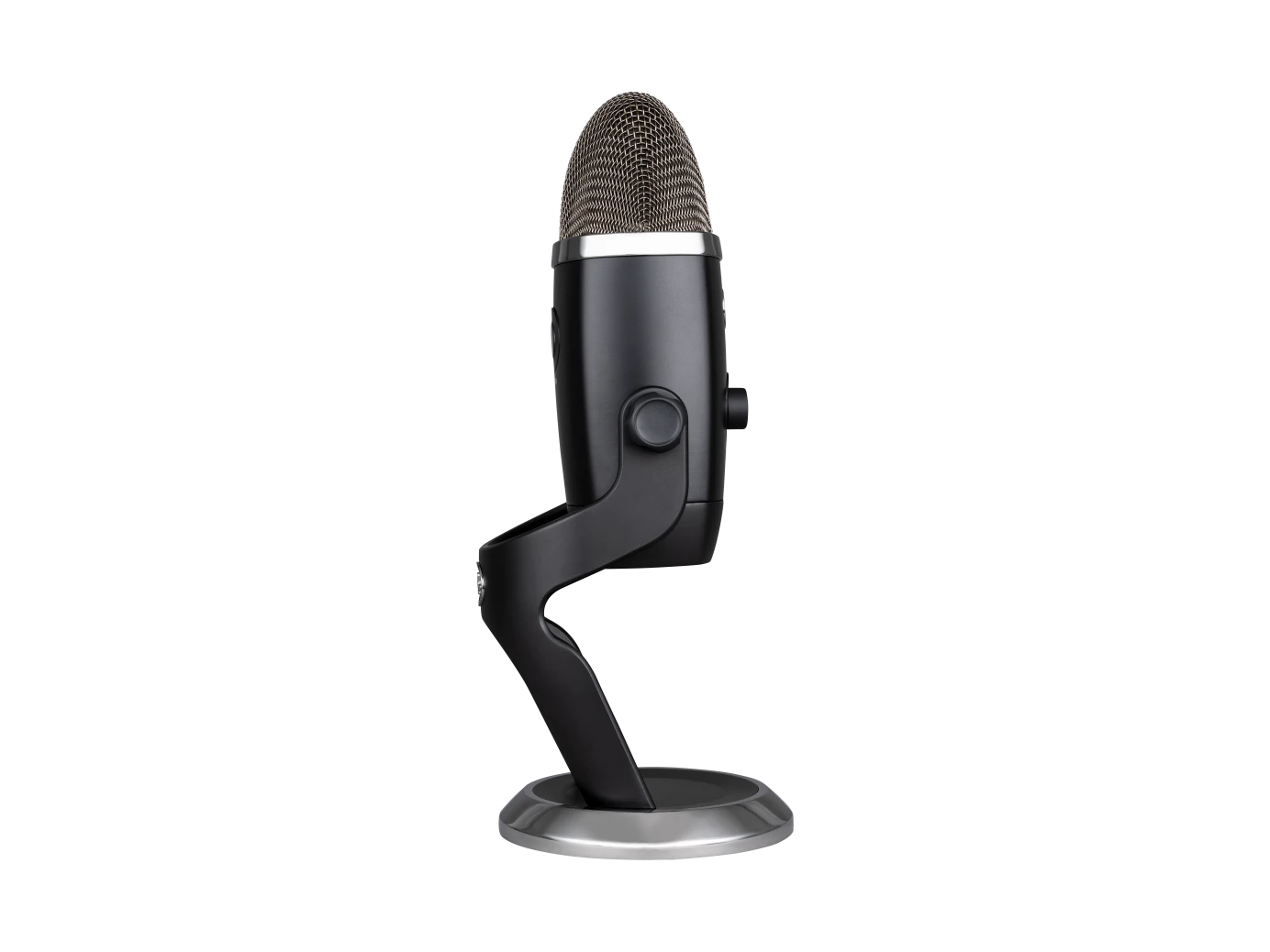

Logitech G Yeti X Microphone
Specifications
Performance Specifications
| Specification | Details |
|---|---|
| Polar Patterns | Cardioid, Omnidirectional, Bidirectional, Stereo |
| Mounting | Removable desktop stand (included), can be mounted to boom arm |
| Consumption | 62 mA - 203 mA |
| Capsules | 4x 0.55 in (14 mm) condenser capsules |
| Frequency Response | 20 Hz - 20 kHz |
| Dimensions | 4.33 in (11 cm) x 4.80 in (12.2 cm) x 11.38 in (28.9 cm) |
| Weight | With stand: 2.8 lbs (1.28 kg) |
| Microphone only: 1.14 lbs (.519 kg) | |
| Compatibility | Windows 10 or later |
| macOS 10.14 or later | |
| Cable | USB 1.1/2.0/3.0 |
Headphone Amplifier Specifications
| Specification | Details |
|---|---|
| Impedance | 13 Ohms min, 16 Ohms typical |
| Power Output (RMS) | 72 mW per channel |
| Frequency Response | 20 Hz - 20 kHz |
| Signal to Noise | 100 dB |
Documentation from Logitech for setup, downloads, videos, warranty information, and more here.
In the Box
The following should be included in the box:
- Yeti X microphone
- Desktop stand
- USB cable
- User documentation
Hardware Setup
- Open your Blue Yeti X Microphone.
- Plug it in.
Software Setup

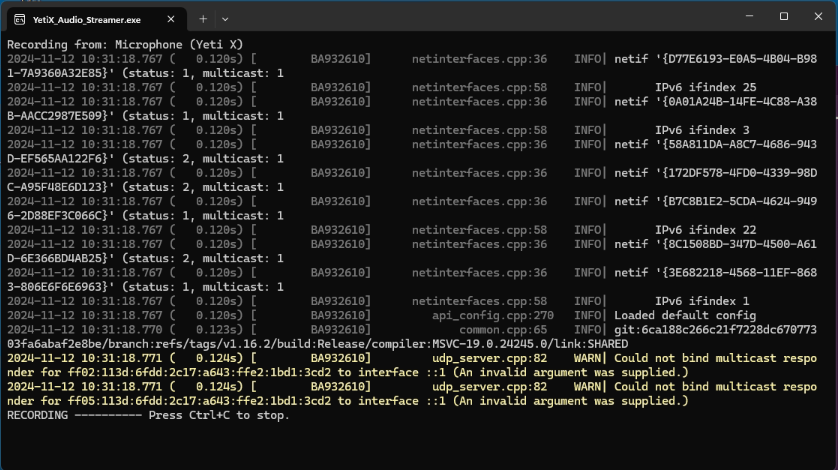

- Double Click on YetiX_Audio_Streamer.exe
- A Command Prompt will appear, showing the stream has started. Press Ctrl + C to stop.
- Make sure YetiX_Audio shows up on your LabRecorder!
