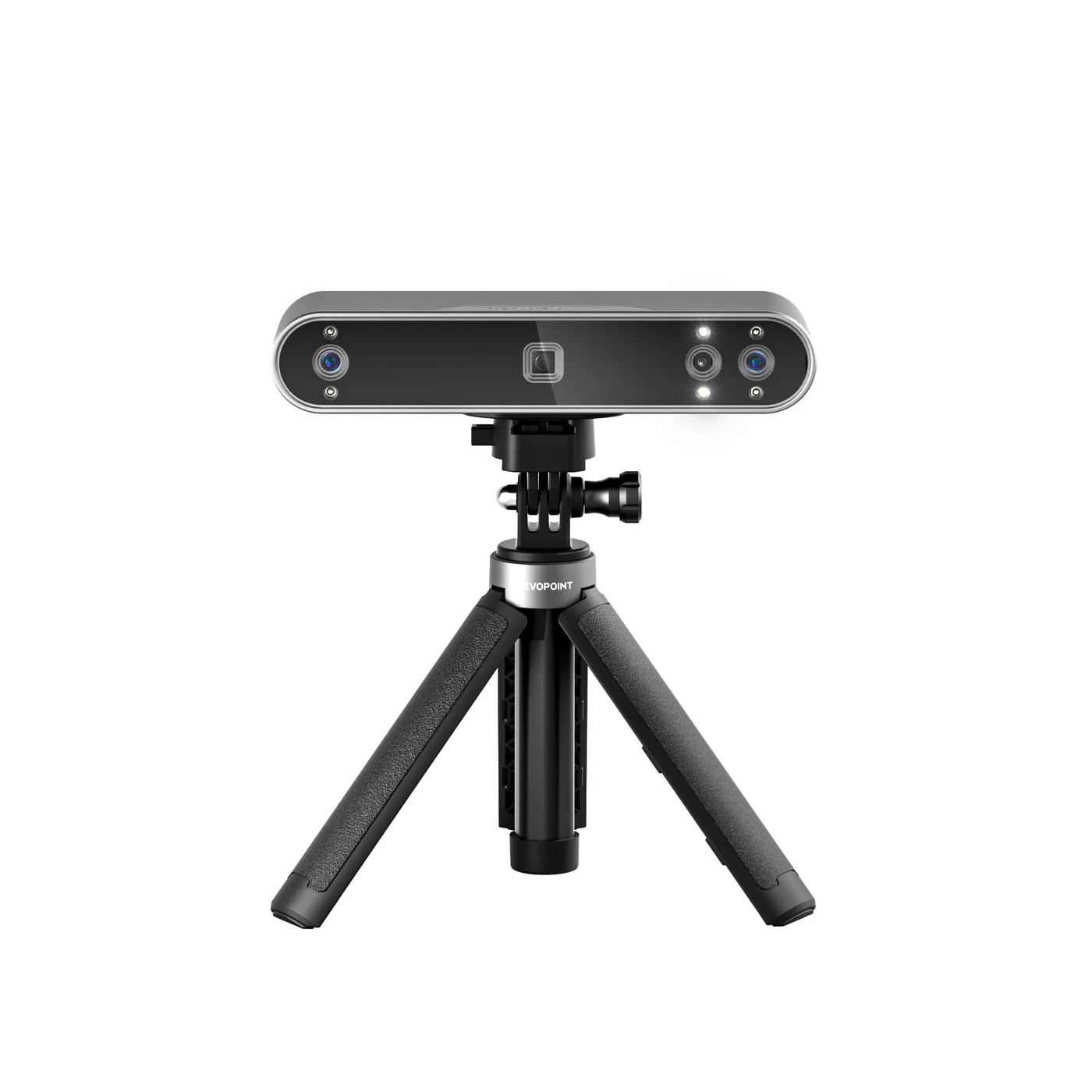

Revopoint POP 3 Plus

Revopoint POP 3 Plus

Specifications

Specification Details
Product Name POP 3 Plus 3D Scanner
Technology Dual-camera Infrared Structured Light
Single-frame Accuracy, up to 0.08 mm
Single-frame Precision, up to 0.04 mm
Scanning Speed, up to 18 fps
Fused Point Distance, up to 0.05 mm
Single Capture Area at Nearest Distance 61 x 68 mm at 150 mm
Single Capture Area at Furthest Distance 244 x 180 mm at 400 mm
Scanning Type Handheld and Desktop
Working Distance 150 ~ 400 mm
Minimum Scan Volume 20 x 20 x 20 mm
Maximum Scan Volume 2 x 2 x 2 m
Auxiliary Lighting Infrared Fill Lights, White Flash LEDs
Angular Field of View (H x V) 40 x 25°
CPU 2 core, 1.6GHz
Position Sensors 9-axis IMU
Scanner Weight 190 g
Dimensions (L x W x H) 153 x 45 x 29 mm
Tracking Methods Feature, Marker, Global Marker
Buttons 3
Connector Type USB Type-C
Power Requirements DC 5V, 1A
Wi-Fi 6
Bluetooth 4.1
Special Object Scanning Use scanning spray for transparent, dark, or reflective objects
Scanning Environment Indoors and Outdoors
Ready to Print 3D Models Yes
Output File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
User Recalibration Yes
Supported Accessories Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit
Compatible Operating Systems Windows 10/11 (64-bit), Android, iOS, macOS 11.0 or better
Light Type Class 1 Infrared Light (Eye Safe)
Minimum PC Requirements macOS: CPU: M1 Pro or better; RAM ≥ 8GB
Windows: CPU: Intel i7 12th Gen or better; RAM ≥ 16GB
Recommended PC Requirements macOS: CPU: M3 or better; RAM ≥ 8GB
Windows: CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

In the Box

The following items are included with the Revopoint POP 3 Plus

Standard Edition:

  • POP 3 Plus 3D scanner
  • Tripod
  • Turntable Topper
  • Phone Holder
  • Carrying Case
  • Calibration Board
  • Magic Mat
  • Markers
  • USB Type-C to Type-A Adapter
  • USB Type-A to Type-C Cable
  • 2-in-1 Mobile Cable
  • Turntable Power Cable
  • Mini Turntable
  • Sample Bust
  • Quick Start Guide
  • Certificate & Warranty Card

Advanced Edition

Additionally the following items come with the Advanced Edition but are not considered essential - Dual-axis Turntable Charger - Dual-axis Turntable - Power Bank - Reusable Sticky Pad

Premium Edition

Additionally the following items come with the Premium Edition. The hand stabilizer is considered essential, and can be purchased seperately if necessary. - Handheld Stabilizer - Phone Holder Bracket - Charging Cable - Micro-B Adapter - Strap

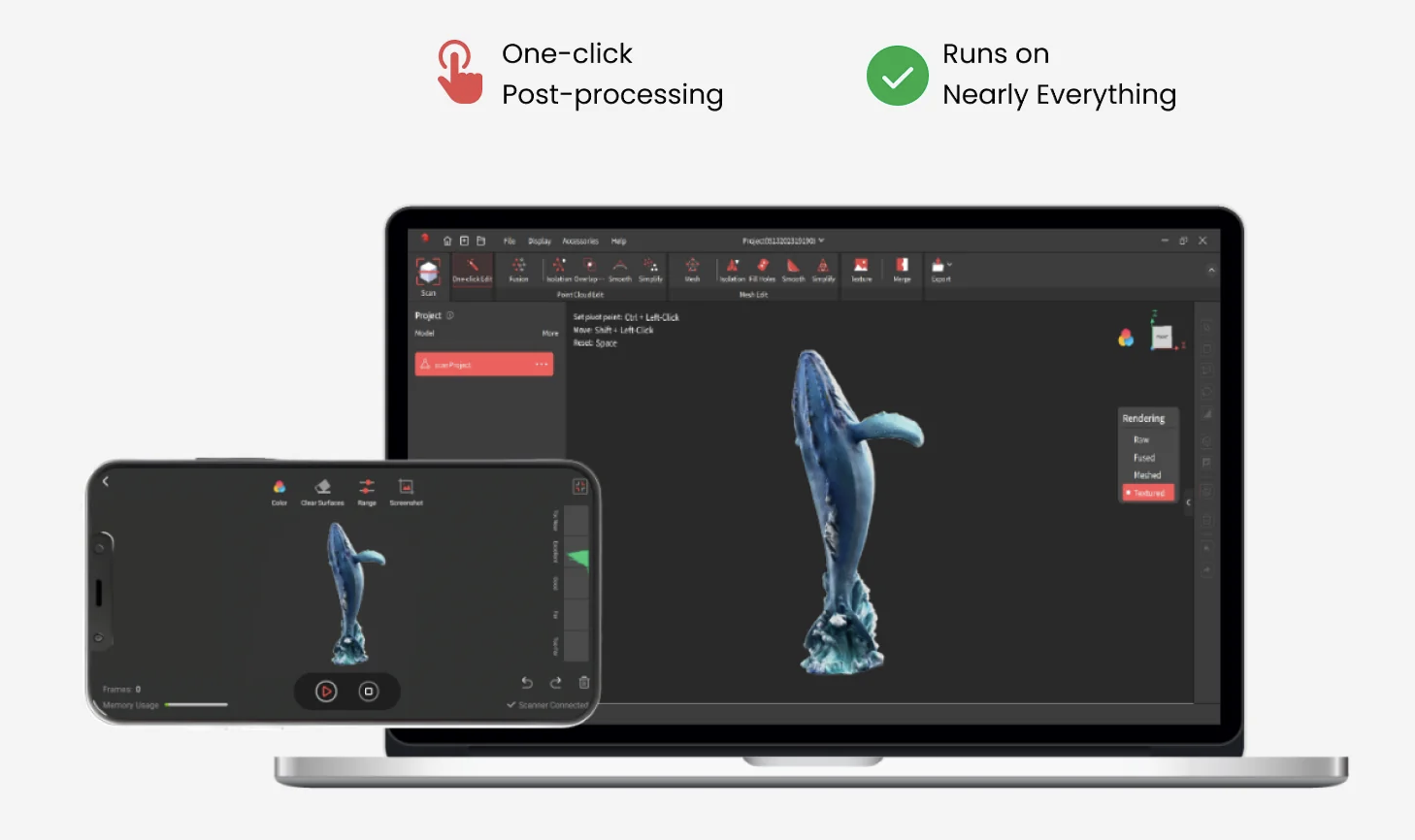

Revo Scan Application

The Revo scan application is free and widely available for us on desktops and mobile devices. Revo Scan

Using The Device

Device Setup

In order to use the scanner, the POP 3 Plus must be connected to power at all times, through a device, power socket, power bank, or handheld stabilizer.

Connecting to a PC (Cable)

  • Connect the device using the USB type-A to type-C cable (type-C should connect to the scanner, type- to the device)
  • Open the Revo Scan and wait for the application to recognize the device

Connecting to a PC (Wi-fi)

  • Connect the device to power through a socket, power bank, or stabilizer
  • In your computer's wifi settings search for the network POP 3 Plus-REVO-XXXXXXX
  • Open the Revo Scan application and wait for the device to be recognized

Connecting to a Mobile Device (USB-C compatible)

  • Attach the phone holder to the power bank or hand stabilizer and the POP 3 Plus on top of the phone holder or stablizer
  • Ensure the mobile device is secure in the phone holder
  • Using the included 2 in 1 cable, attach the Type-C end to the scanner's port
  • Attach the Type-A end to the power bank or hand stabilizer.
  • The second Type-C end should go into the mobile device.
  • Open the Revo Scan application on your device.

Connecting to a Mobile Device (Wi-Fi)

  • Attach the phone holder to the power bank or hand stabilizer and the POP 3 Plus on top of the phone holder or stablizer
  • Ensure the mobile device is secure in the phone holder
  • Open the mobile device's Wi-Fi and connect to the POP 3 Plus-REVO-XXXXXXX network
  • Open the application on your device.

Scan using Revo Scan

  • Adjust Accuracy, Object type, and tracking mode as is appropriate.
  • Aim the device to appropriately scan the subject's head.
  • Adjust until the distance indicator displays Good or Excellent
  • Exposure for Depth and RGB cameras can be set to Auto
  • When ready, press play and begin the scan.
  • The scan can be interrupted and resumed using the pause and play buttons.
  • The scan will complete upon clicking the checkmark button.
  • Post scan editing can be done by the model automatically, or manually as the user needs
  • Output the model in the desired format (PLY, OBJ, STL, ASC, 3MF, GLTF, FBX)
